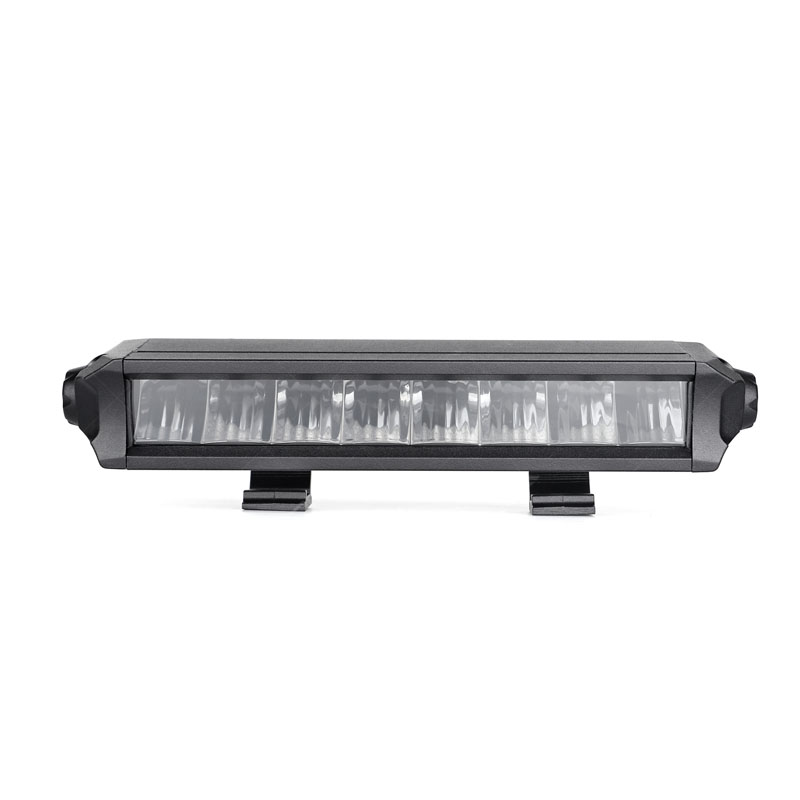

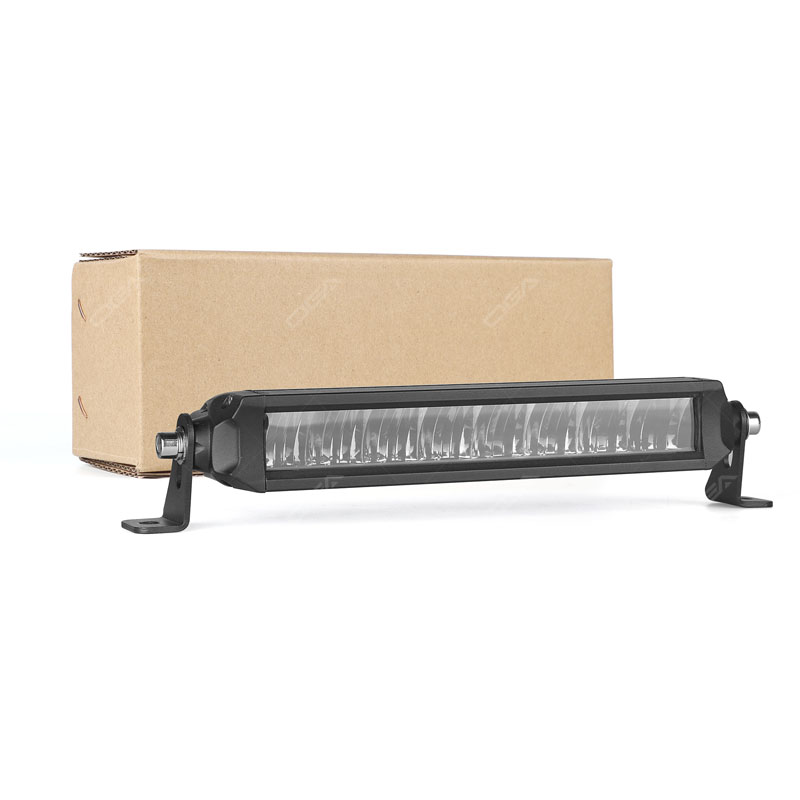

SAE compliant 10 inches auxiliary high beam super slim LED light bar

SKU# 41A510

Usage: Auxiliary high beam Lumens: 3478LM Color: 6000K Warranty: 2 years

◆ SAE J581 compliant auxiliary high beam

◆ Low profile slim single row with no screw front frame

◆ Half convex optics with automotive grade modular chips

◆ For on-road use, not just off-road use

Wholesale request

Details PDF download-1

Super Slim LED Light Bar

I Product specifications

PRODUCT NAME	OGA-46-10"-DRIVING	THEORETICAL LUMENS	4800LM
LED SOURCE	8 x 10W HFL2 LED	ACTUAL LUMENS	3478LM
POWER OUTPUT	80W	VOLTAGE COMPATIBILITY	9-36V DC
CERTIFICATION	SAE J581	WARRANTY	2 YEARS

I Features

Super Slim LED Light Bar

What are the special parts about OGA 46 Series Street Legal Super Slim LED Light Bar?

1. SAE/DOT compliance, not just off road use

Off road auxiliary LED light bars are common in the market. OGA 46 series SAE compliant street legal led light bars can be used on road, not just off road.

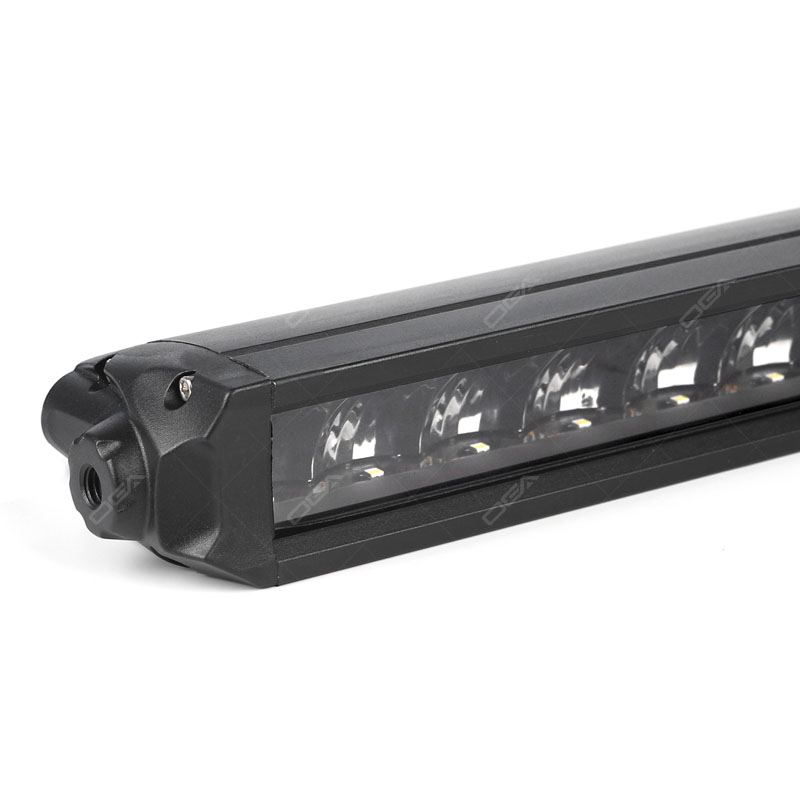

2. Half convex optics with automotive grade modular chips.

The half convex design is perfect according to HFL2 and HFL1 chips. High-end auto automotive grade modular chips are used for longer life span.

Super Slim Light Bar

3. Patented optical design combine legal fog light and strobe lights all in one.

These series carefully engineered product by professional optical designers. There are 3 beam patterns optional for 6 inches street legal led light bars as below, auxiliary high beam SAEJ581, auxiliary fog light SAEJ583 and auxiliary fog light SAEJ583 + warning strobe SAEJ845.

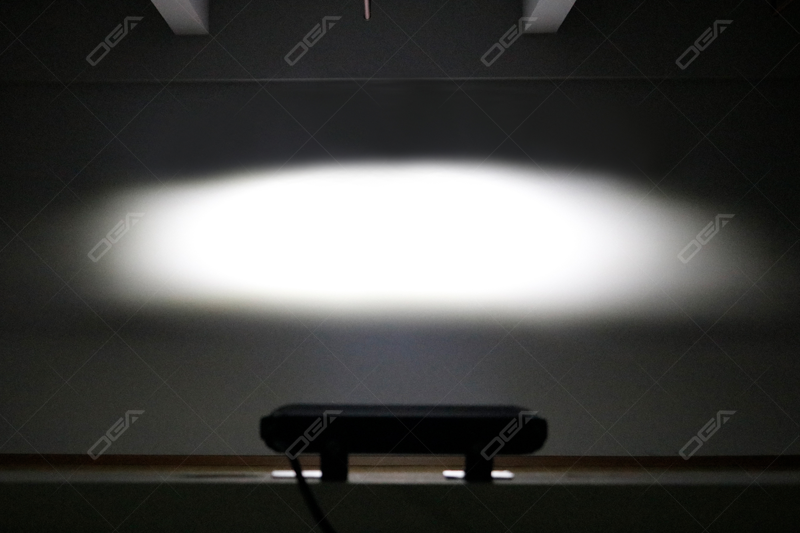

- SAE Driving beam is designed for auxiliary high beam, and it is also excellent for general illumination.

- SAE Fog beam was designed for auxiliary fog beam with wider view.

- SAE Fog beam + Strobe light provides an auxiliary wider fog beam and amber warning strobe light all in one. (OGA new C6F series wiring harness with 4 strobe modes is compatible with OGA 46 series 6'' and 10'' fog+strobe function light bars.)

- And one of them is a 20" led light bar that has a legal high beam, fog light, and strobe light all in one.

OGA Super Slim LED Light Bar

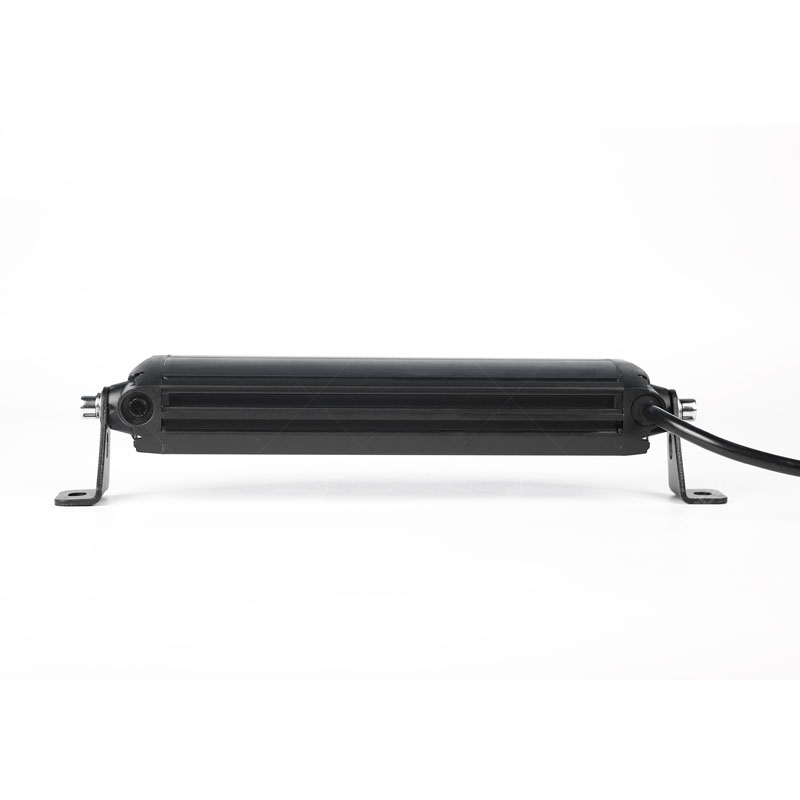

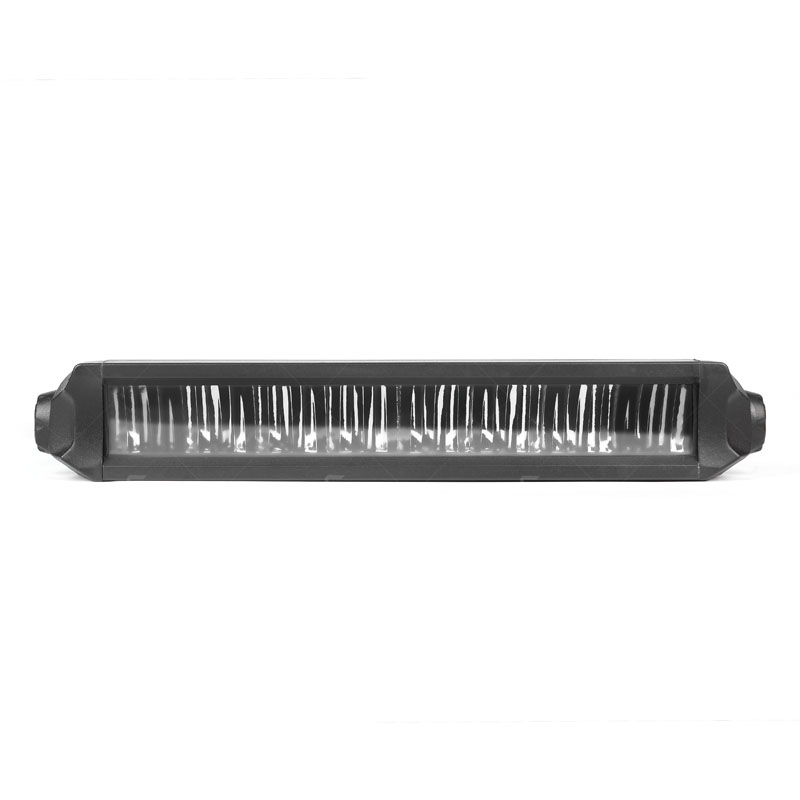

4. Low profile slim single row with no screw front frame

Low profile super slim light bars can allow them to be fit in the bumpers and grills in more vehicles. The no screw front frame has better waterproof and performance.

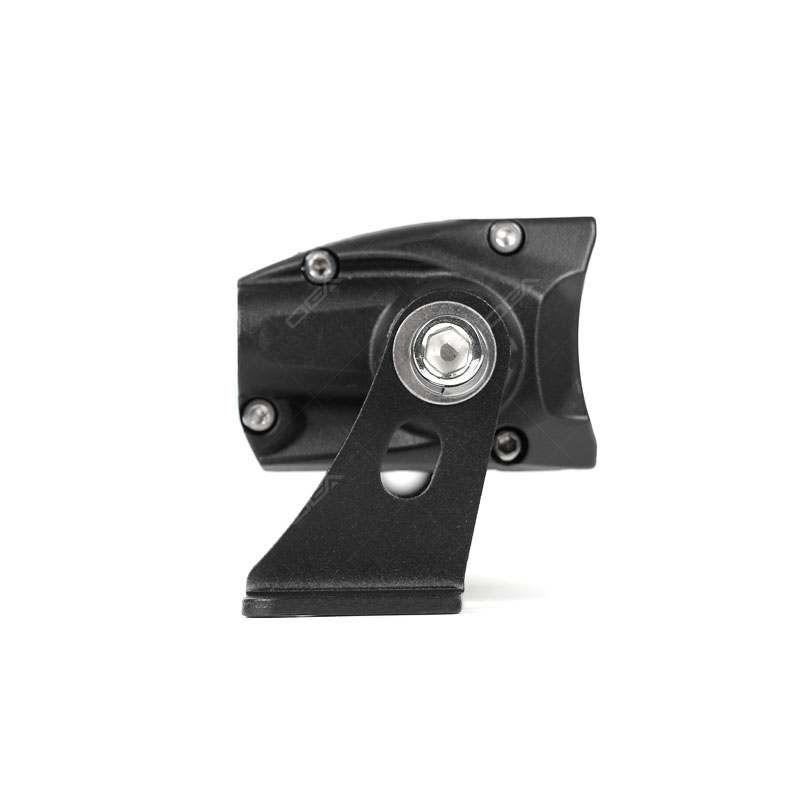

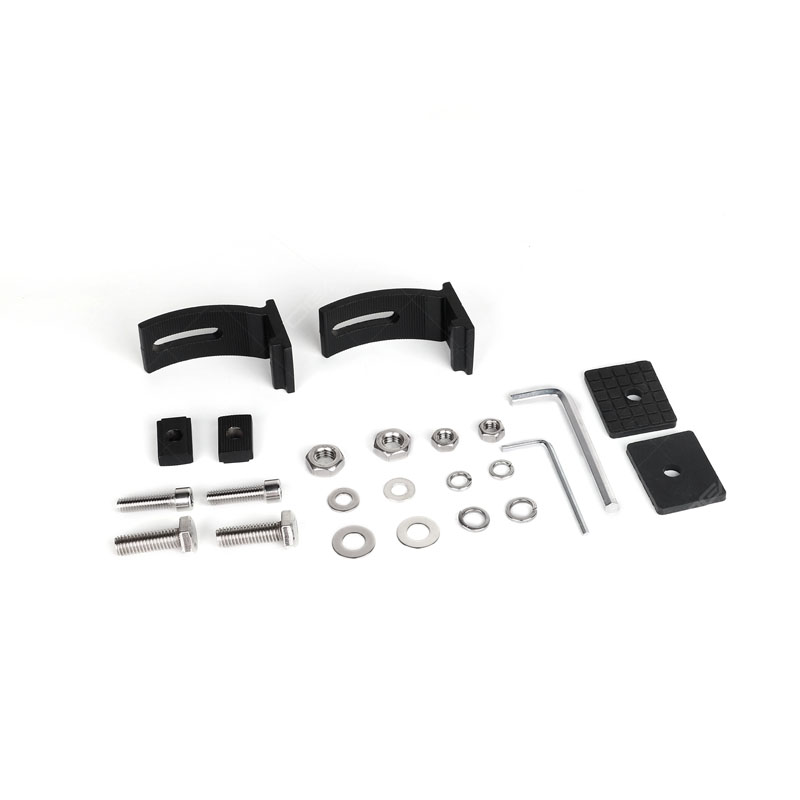

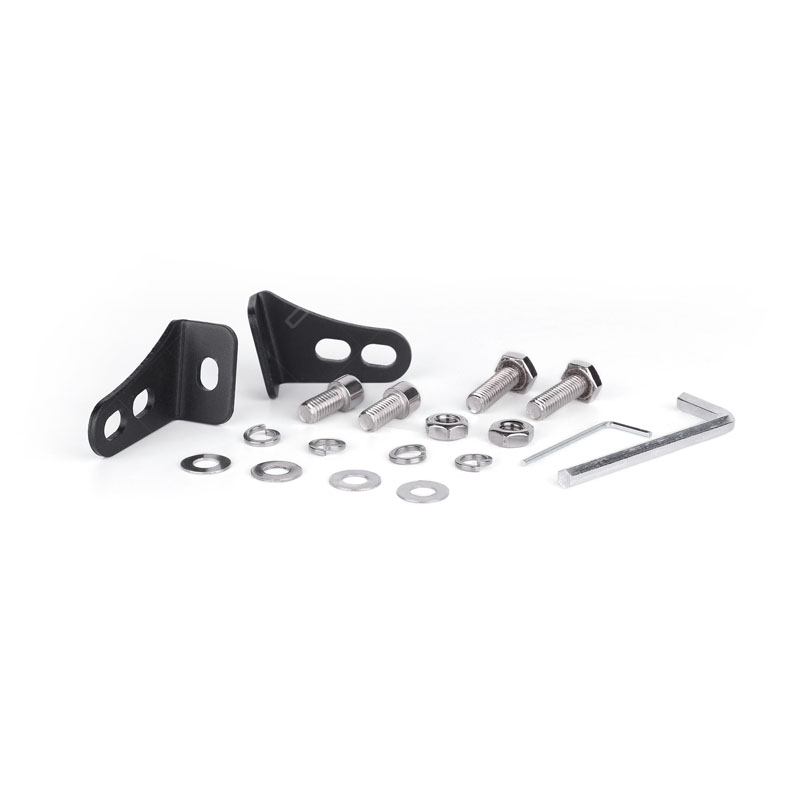

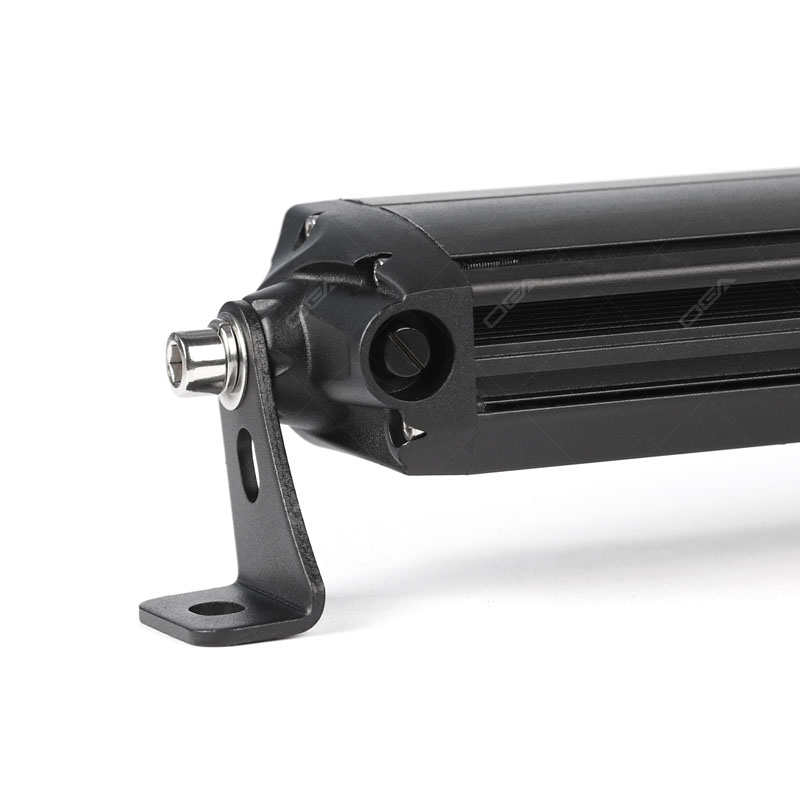

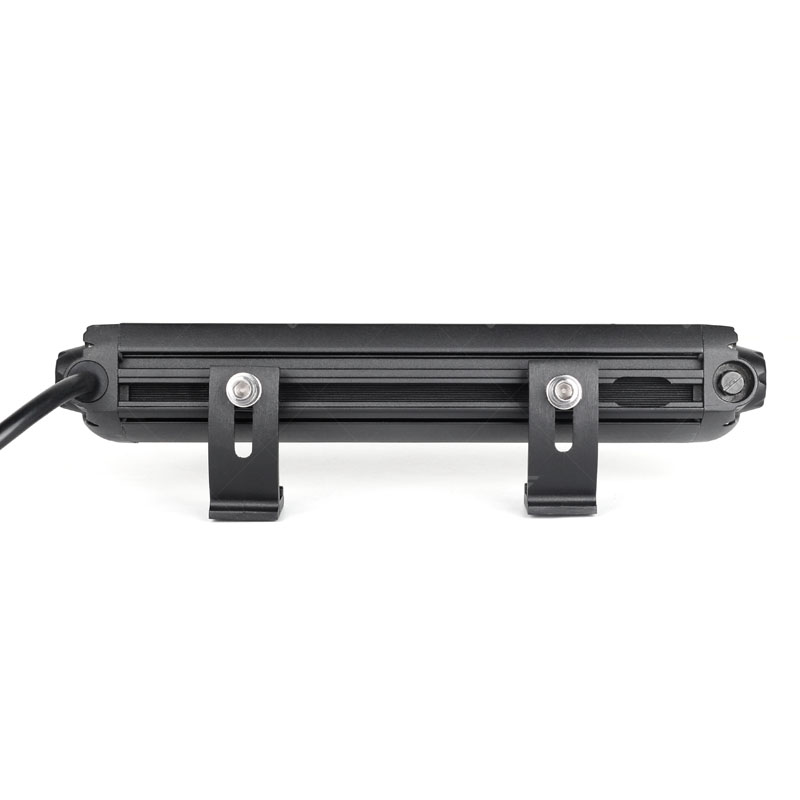

5. Versatile mounting options

There are versatile mounting options for easier installation, side mounting and bottom mounting available for super slim LED light bar.

Street Legal Super Slim Light Bar New Super Slim Light Bar Wholesale Super Slim Light Bar

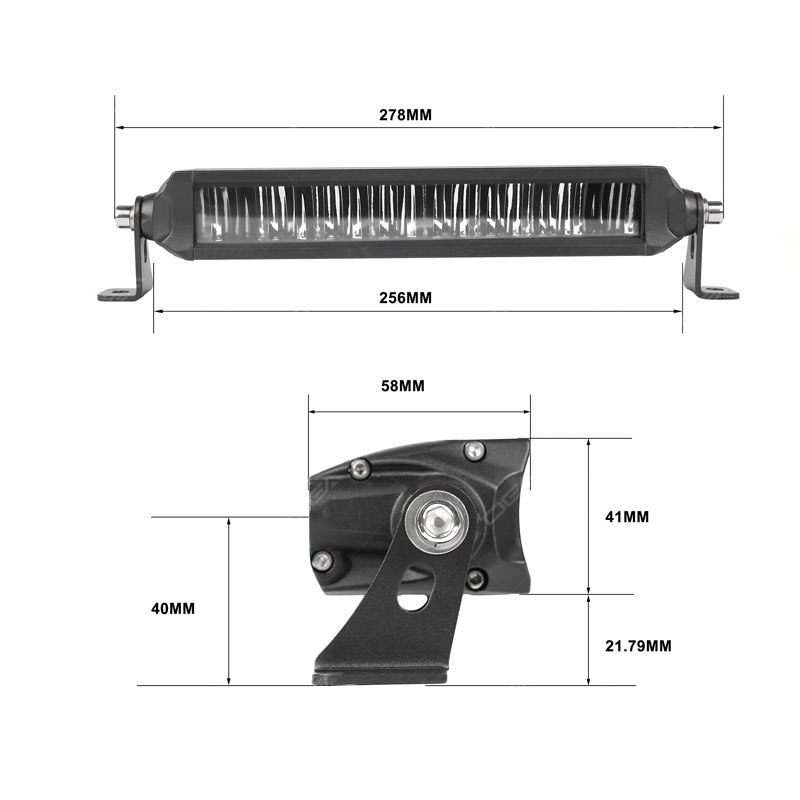

I Product Size
