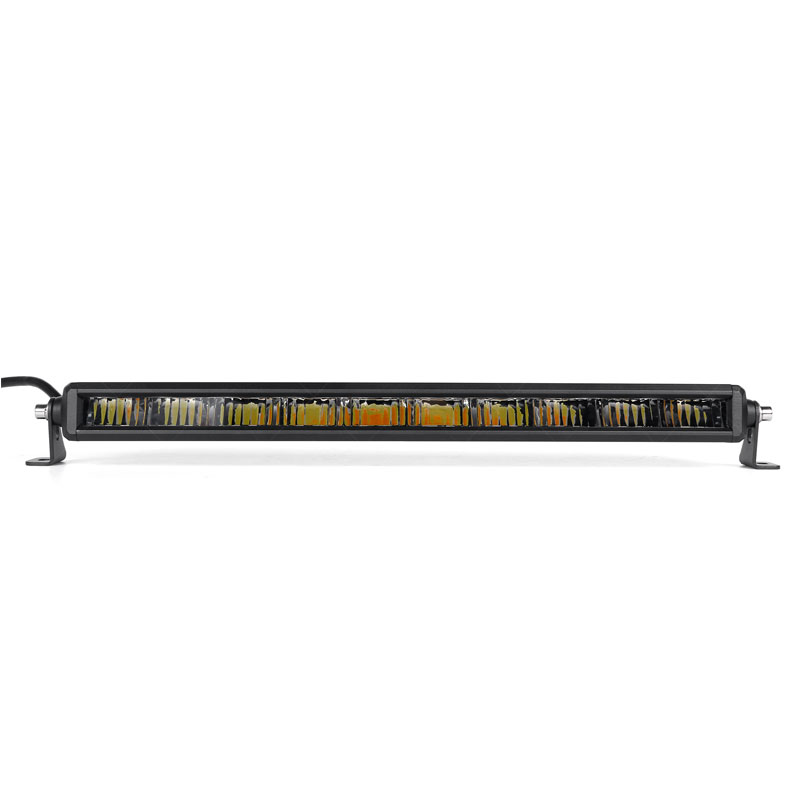

OGA LED 54 series 20 inches slim off-road LED light bars wholesale

◆ Slim Design But Achieve High Lumens Output

◆ Customized Half Convex Reflector Design

◆ Screwless-Bezel Design with Hardened PC

◆ Versatile Mounting Options

◆ Special Holes design

◆ Optional Configurations

Wholesale request

best led off road light bar supplier china

Product specifications

PRODUCT NAME OGA-54-20"-D-WA SKU# 4LB540
COLOR TEMP.

6000K/AMBER

LED(PCS) 10 x 30W 3570 LED
LENTH(INCH/MM) 19.72"/501 VOLT(V) 9-36V
LUMENS(LM)

5678LM WHITE

4213LM AMBER

5177LM WHITE&AMBER

WATT(W)

150W WHITE

150W AMBER

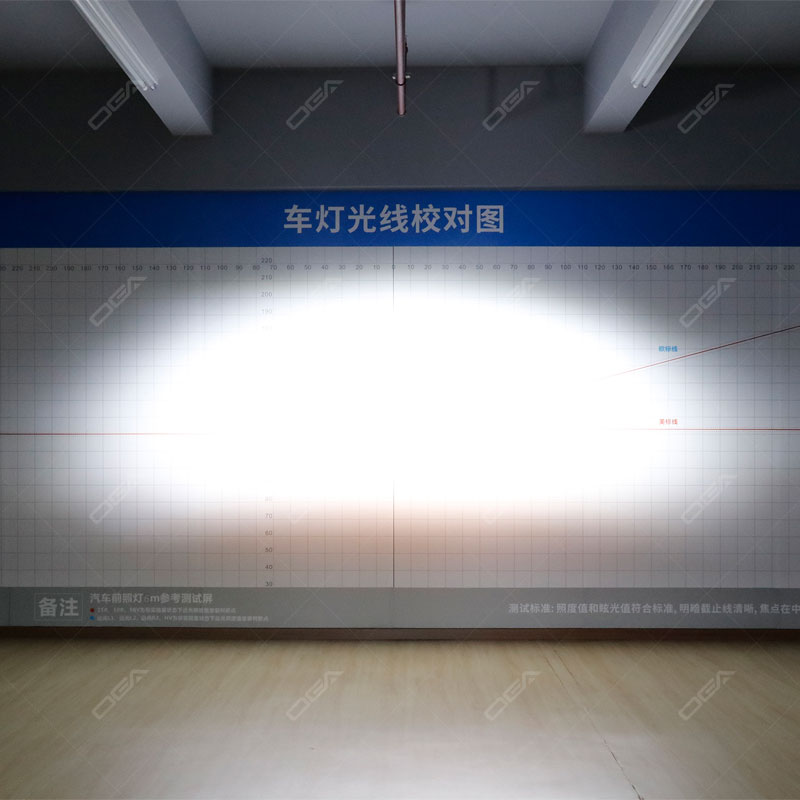

BEAM PATTERN DRIVING WARRANTY 2 YEARS

Features

Slim Design But Achieve High Lumens Output
Without sacrificing brightness, the OGA LED 54 series LED light bars' super slim and low-profile housing allows them to be mounted in more places; the slim design allows the light bars to have less air resistance and minimizes the wind noise; the slim design also cuts down the weight of the light bar, lowering the shipment cost.
best rated led driving lights

Customized Half Convex Reflector Design
The half convex reflector is the newest and trending optical component. Unlike the traditional reflector cups, the half convex reflectors used in OGA LED's 54 series LED light bars are high efficient chrome reflectors. They lessen the stray light emission, producing a more precise driving beam pattern. In the meanwhile, they can minimize the loss of light efficiency, creating a higher light intensity at longer range. Thereby,  a good half convex reflector design can offer a much safer driving experience.
brightest led off road light bar

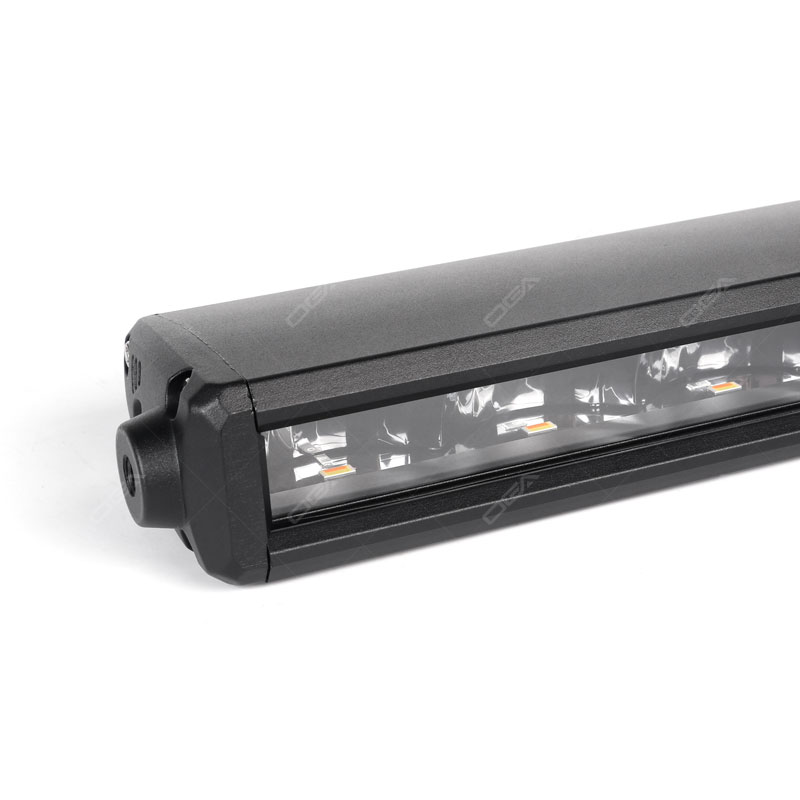

Screwless-Bezel Design
Screwless-bezel means less water ingress possibility and better waterproof, this kind of design is very popular now, which doesn't like the traditional light bar front face with the screws on that has the risk for getting issues like water leakage and condensation. We also use built-in waterproof rubber strips behind the front frame to create a better sealing for moisture.
brightest led off road light bar china

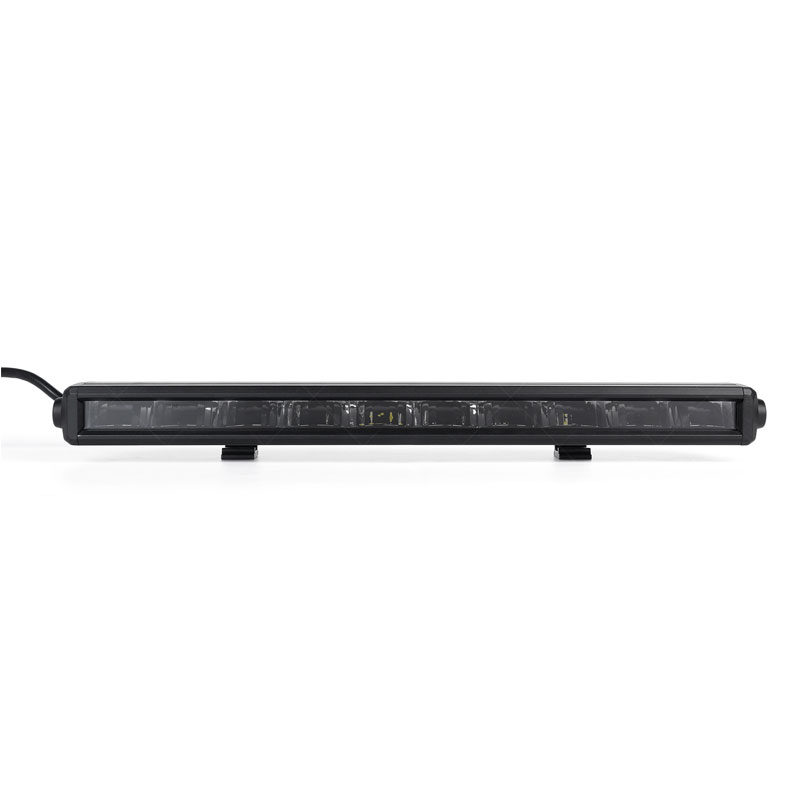

Versatile Mounting Options
There are two sets of mounting brackets coming with the OGA LED 54 series LED light bars. Users can choose side brackets or bottom brackets according to their needs. With some maybe or maybe not needed drilling or modifying, the way to mount 54 series LED light bars by using side brackets is plain and simple.
brightest led off road light bar company china

Special Holes design
The OGA LED 54 series LED light bar features the exclusive pressure equalization vent to eliminate thermal expansion and pressure cycling, preventing water from entering the light body.
brightest led off road light bar in china

Hardened PC
The OGA LED 54 series LED light bar features the hardened polycarbonate (PC) lens for high impact resistance and scratch resistance.
brightest led off road light bar manufacturer china

Single Color Light Bars and Dual Color Light Bars Optional

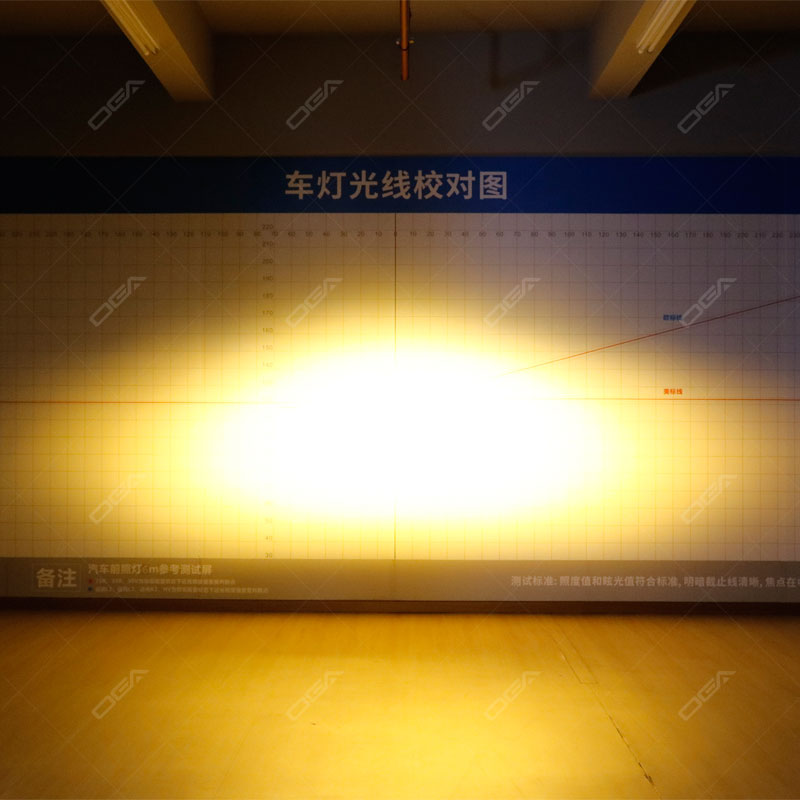

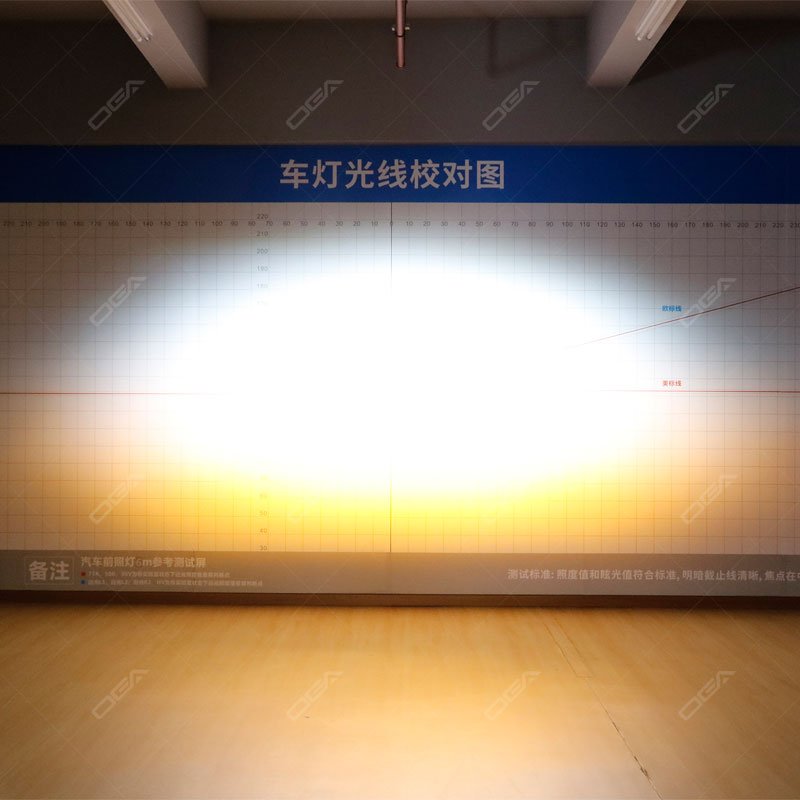

There are two lighting color configurations optional for our 54 series LED light bars: white single color, and white/amber dual color. For dual-color type, there are 3 different modes: white, amber, and white combined with amber.
brightest led off road light bar supplier china

china bar led lighting for off road manufacturer

china bar led lighting for off road supplier

china best cheap off road led light bar manufacturer

china best cheap off road led light bar supplier

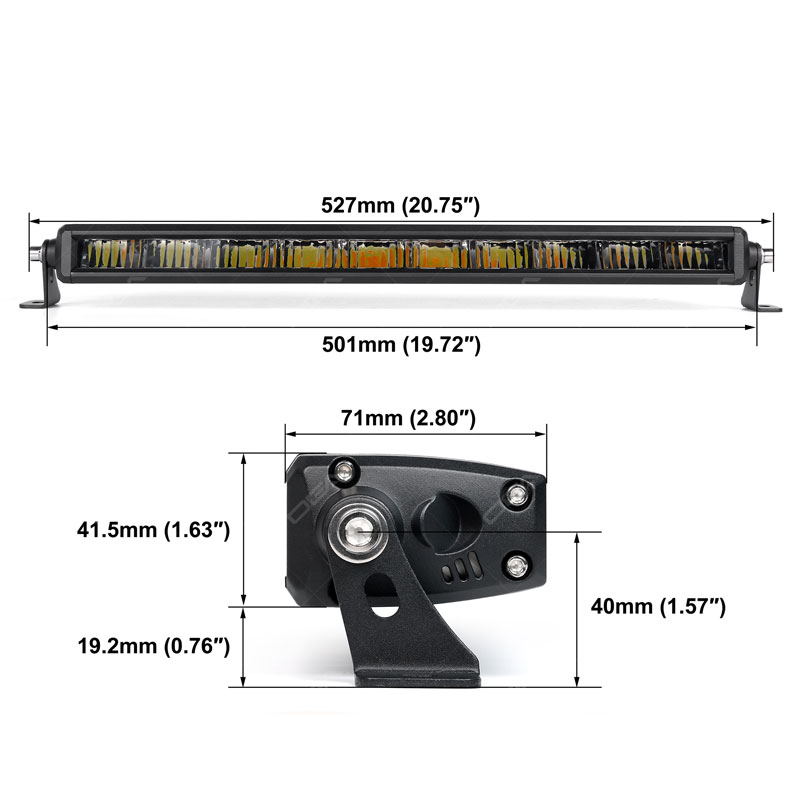

Product Size
