C6F series dual output light bar harness kit with DT connectors

SKU# 830002

Output: 2 outputs Wire length: 3 meters Connector: Deutsch DT type Warranty: 1 year

◆ Compatible with street legal 46 series 6" or 10" fog+strobe light bar

◆ It can power 2 lights together.

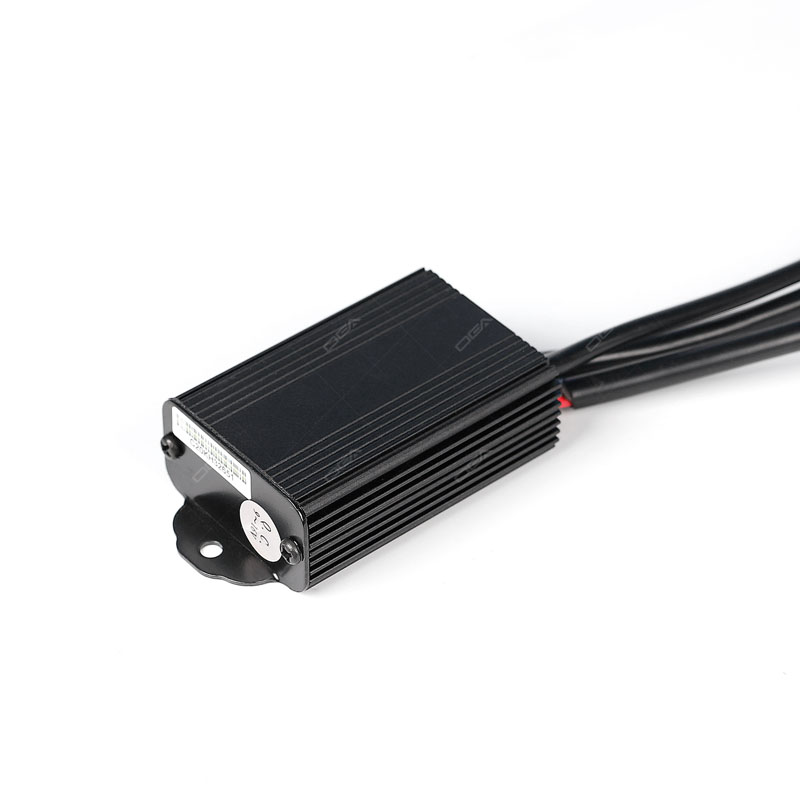

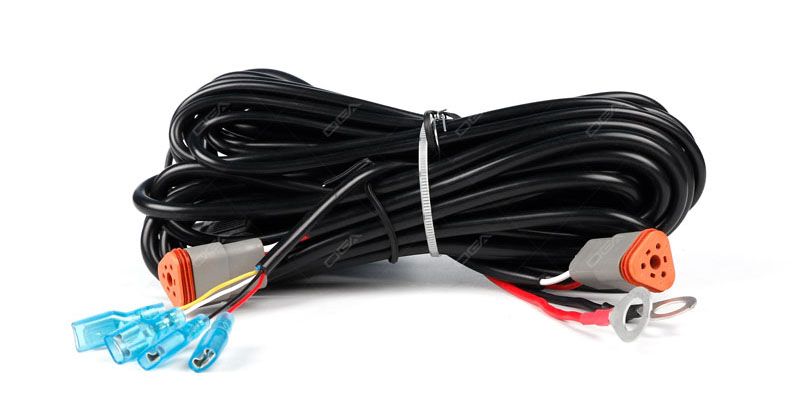

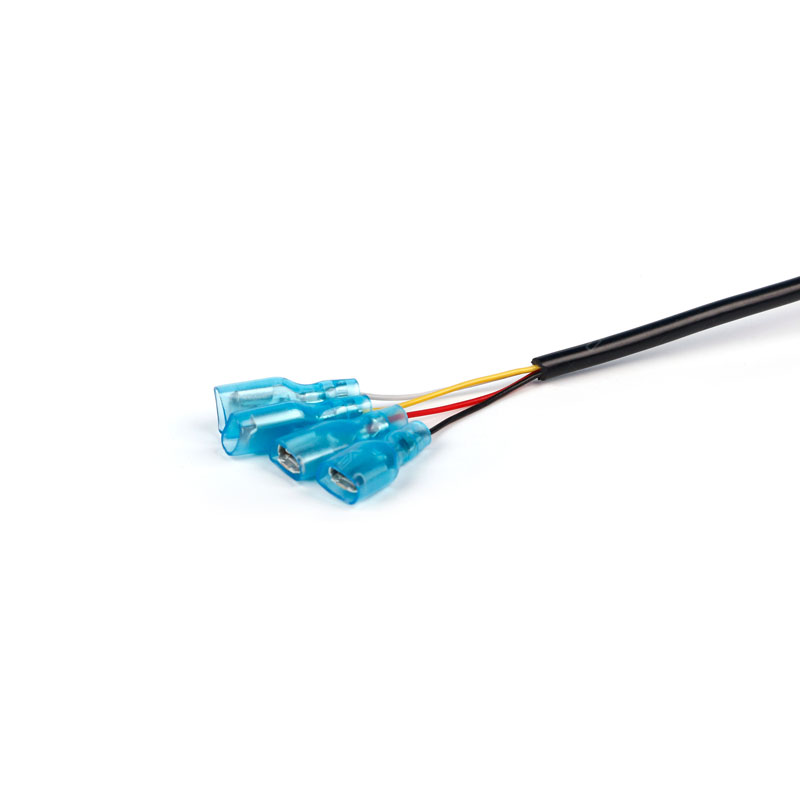

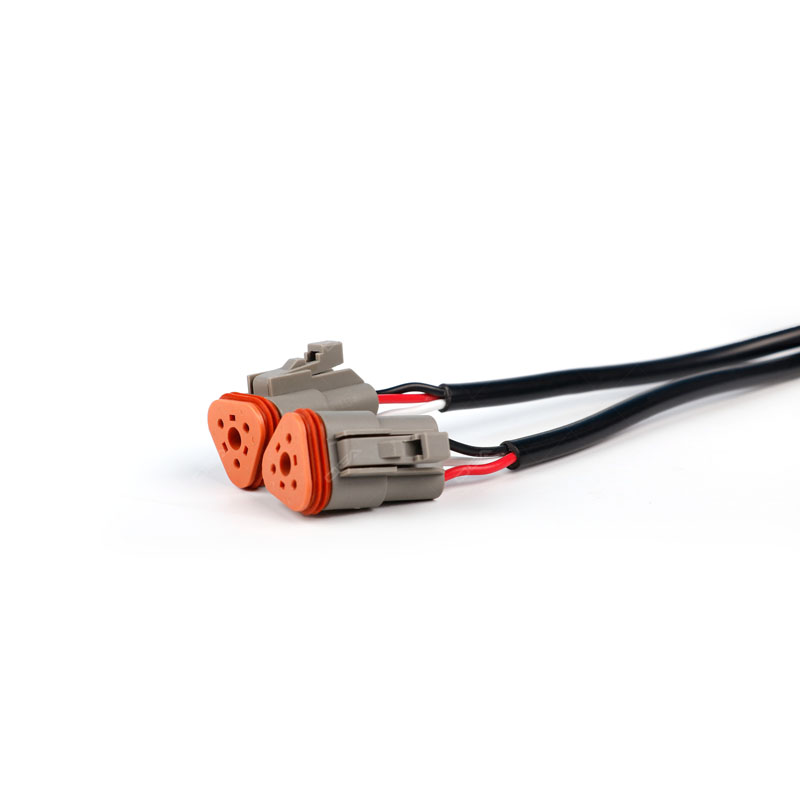

◆ The wire harness includes two 3-Pin DT connectors, 1 fuse, 1 controller and 4 spade connectors. (Switch panel not included)

Wholesale request

Details

C6F LED Bar wire harness

I Product specifications

PRODUCT NAME	OGA-C6F-2 OUTPUT	DT CONNECTOR	2 OUTPUTS
POWER OUTPUT	≤50W*2	WIRE SIZE	16AWG
WIRE SIZE	3.0M	WARRANTY	1 YEAR
USAGE	AUXILIARY FOG+STROBE LIGHT WIRING HARNESS	VOLTAGE COMPATIBILITY	9-36V DC

I Features

What are the advantages of C6F series auxiliary light wiring harness?

1. Innnovative wiring harness

With our special OGA-C6F-2 OUTPUT wiring harness and OGA-S1-2 swithces, you can separately control high beam, fog light & strobe function of street legal 46 Series 6" or 10" fog+strobe light bar . Or you can light them up together. (Check out above video and see how to install)

2. Built-in strobe mode

Strobe mode is built inside the wiring harness controller for emergency situation use to improve driving safety at night.

3. Easy installation

Plug and play design and stable connection. Wire length up to 3 meter allows you to put it wherever you want on the vehicle.

I Product Size
