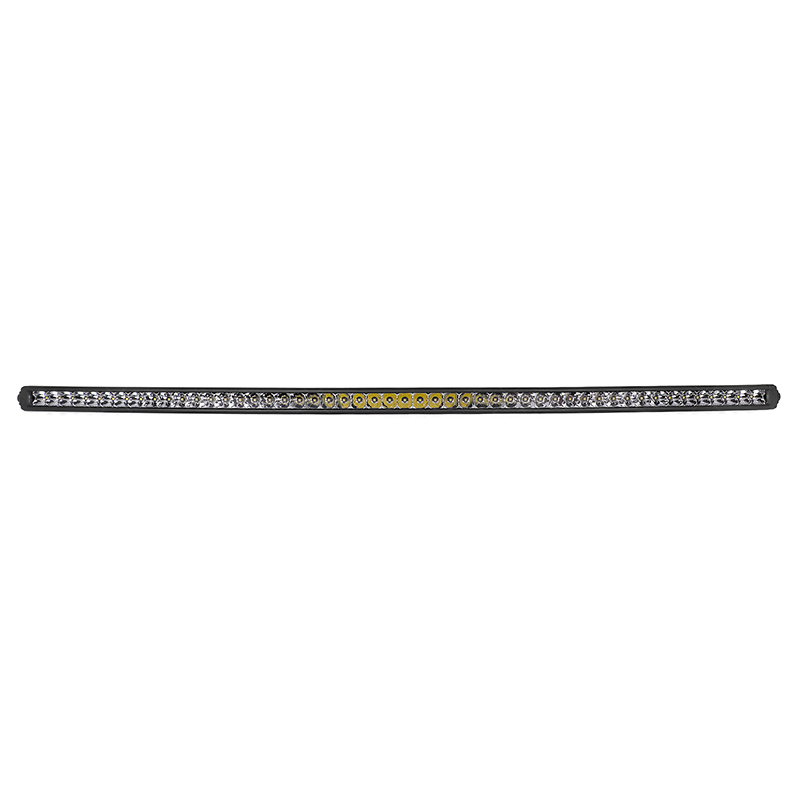

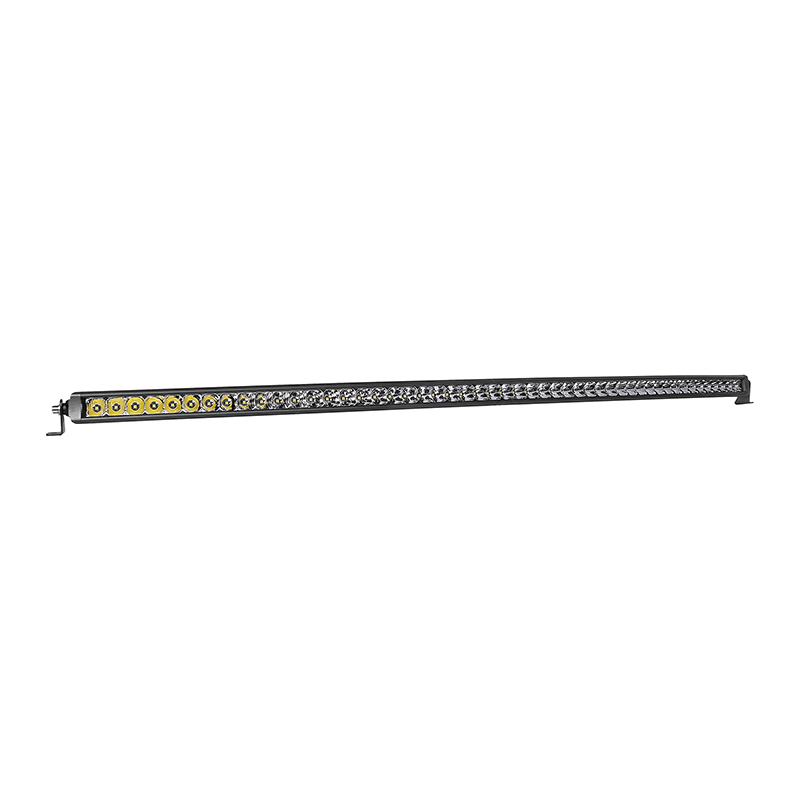

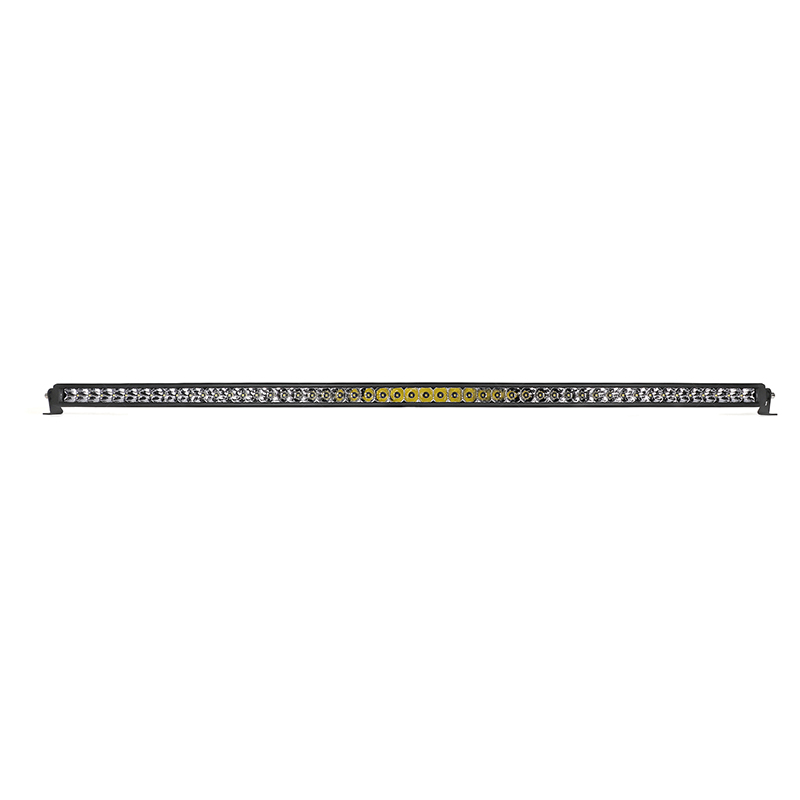

48 series the brightest 50 inches curved LED light bar on the market

SKU# 48E310

Usage: Spot Beam Lumens: 14380LM Color temperature: 6000K Warranty: 2 years

◆No screw front frame slim low profile 50 inches LED light bar

◆Optimized optical design with OSRAM P8 LED chips

◆Optimized integrated design

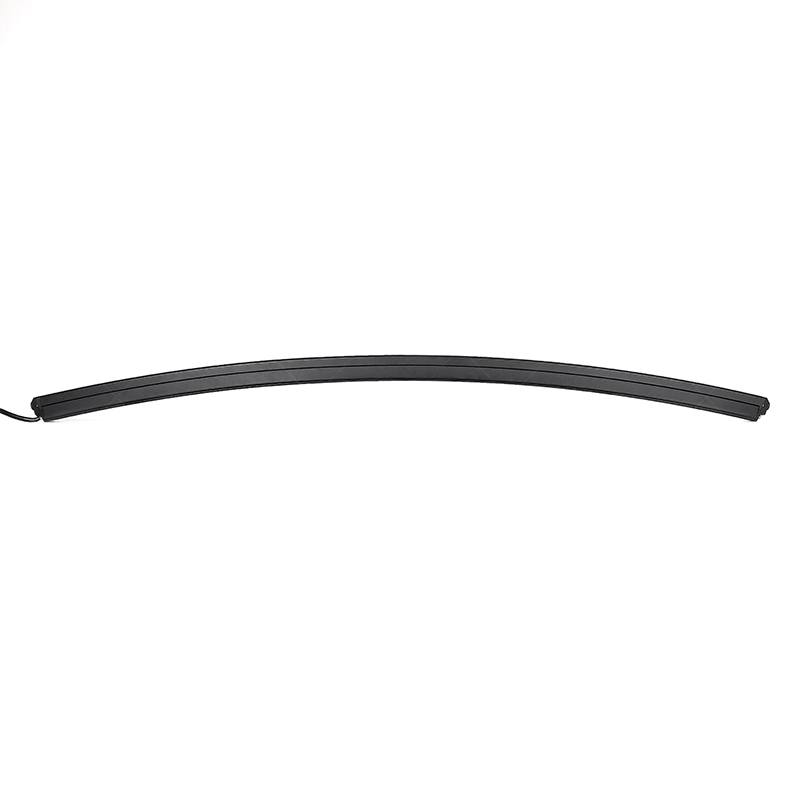

◆Available in straight or curved

Wholesale request

Details PDF download-1

LED Truck Light Bar

I Product specifications

PRODUCT NAME	OGA-48-50"-SPOT-CURVED	THEORETICAL LUMENS	26100LM
LED SOURCE	50 x 6W OSRAM P8 LED	ACTUAL LUMENS	14380LM
POWER OUTPUT	300W	VOLTAGE COMPATIBILITY	9-36V DC
COLOR TEMP.	6000K	WARRANTY	2 YEARS

I Features

Why did we launched out 48 Series No Screw Front Frame Single Row Light bars?

1. Optimized optical design for higher efficiency and better beam pattern

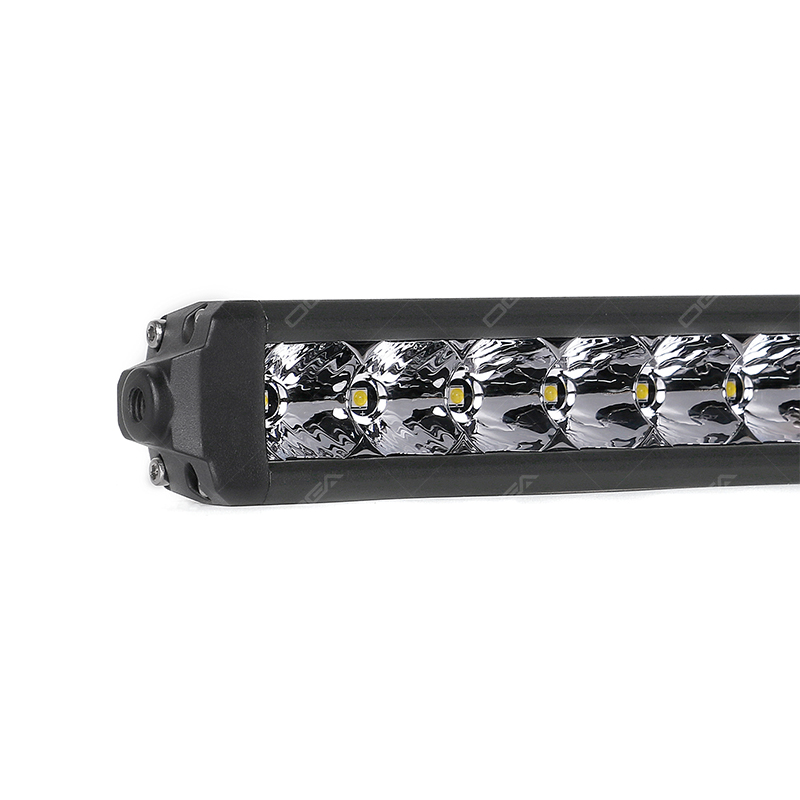

-The reflector design is improved for better light beam pattern and higher efficiency.

-High efficiency OSRAM P8 LED chips are used for 48 series off road LED light bars.

-This series off road LED bars have the most optimized performance in the same grade of product in the market.

2. Optimized integrated design for maximum your benefits

-We adopt slim low profile for easier installation and fitment in bumper and grills in more vehicles

-We optimized heat dissipation for the highest light efficiency and a balanced weight.

3. No screw front frame for better waterproof and performance

-The LED light bars in the market are usually with several screws for the front frame, which have the risk for getting issues about water leak and condensation.

-OGA 48 series single row off-road LED light bars without screws for the front frame have better waterproof and performance.

-The led bars also have faster heat dissipation on the front of bezel and whole light.

-The profile is lower, corrosion is less.

4. Versatile mounting and size options

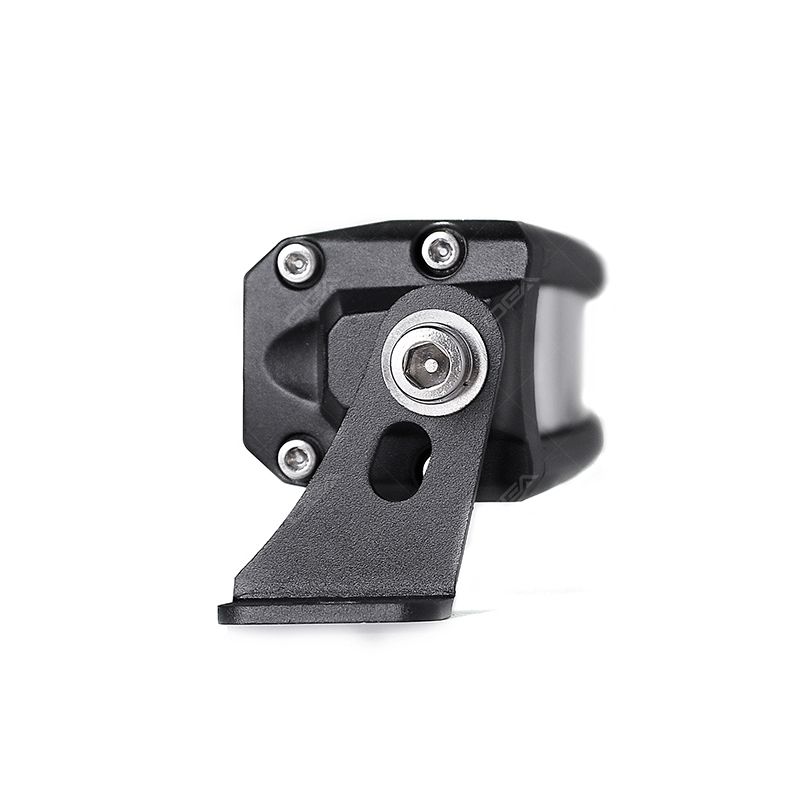

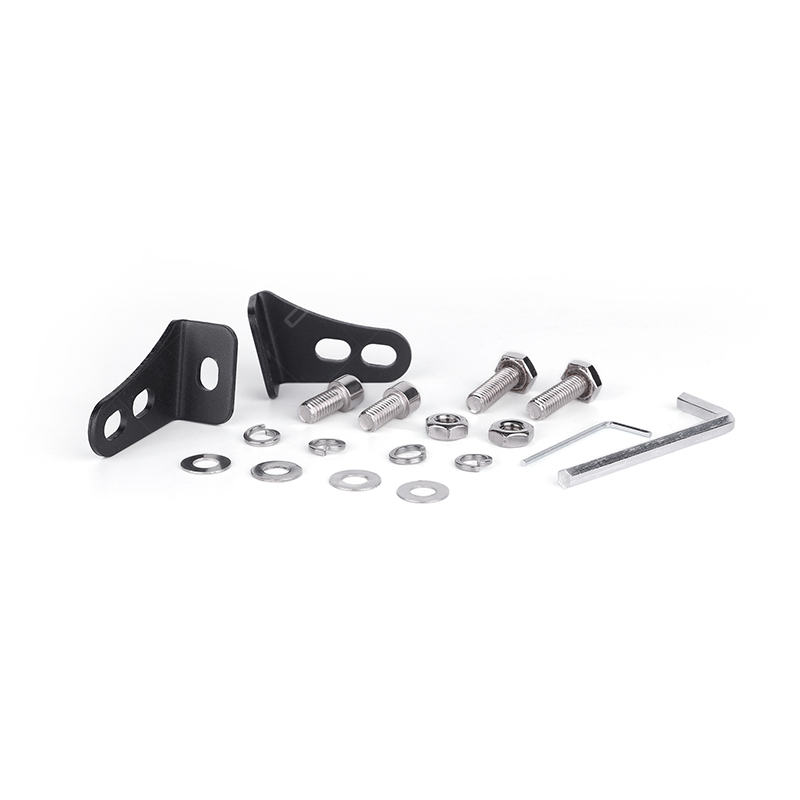

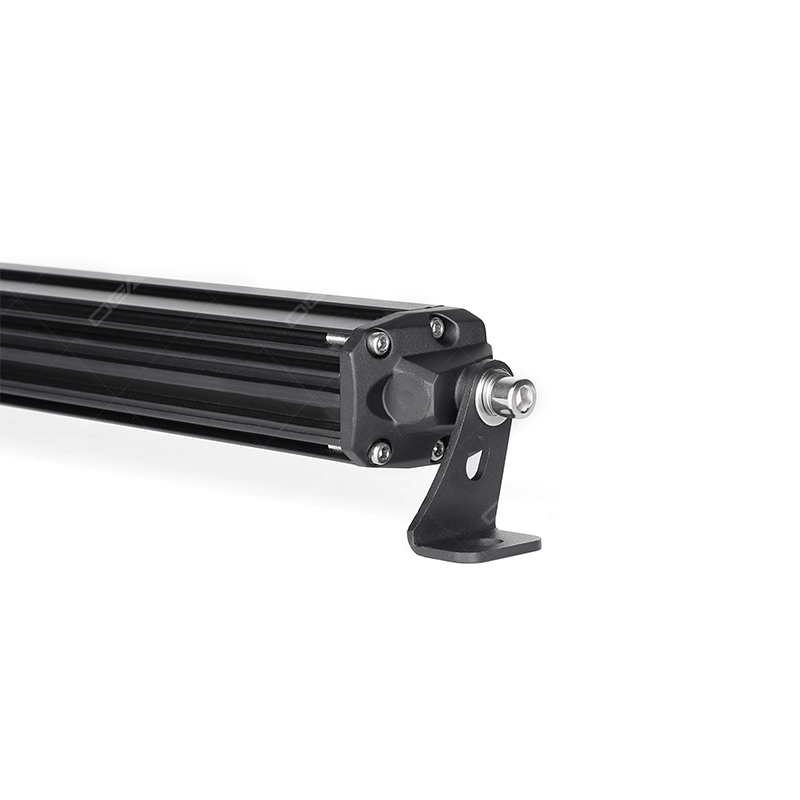

-There are two mounting options for easier installation, side mounting and bottom mounting available.

-12”, 20”, 30”, 40” and 50” are optional for 48 series straight single row off road led bars, 20”, 30”, 40” and 50” are optional for 48 series curved off road led bars.

F150 LED Light Bar Behind Grille Toyota Tundra LED Light Bar UTV LED Light Bar Wholesale LED Light Bars

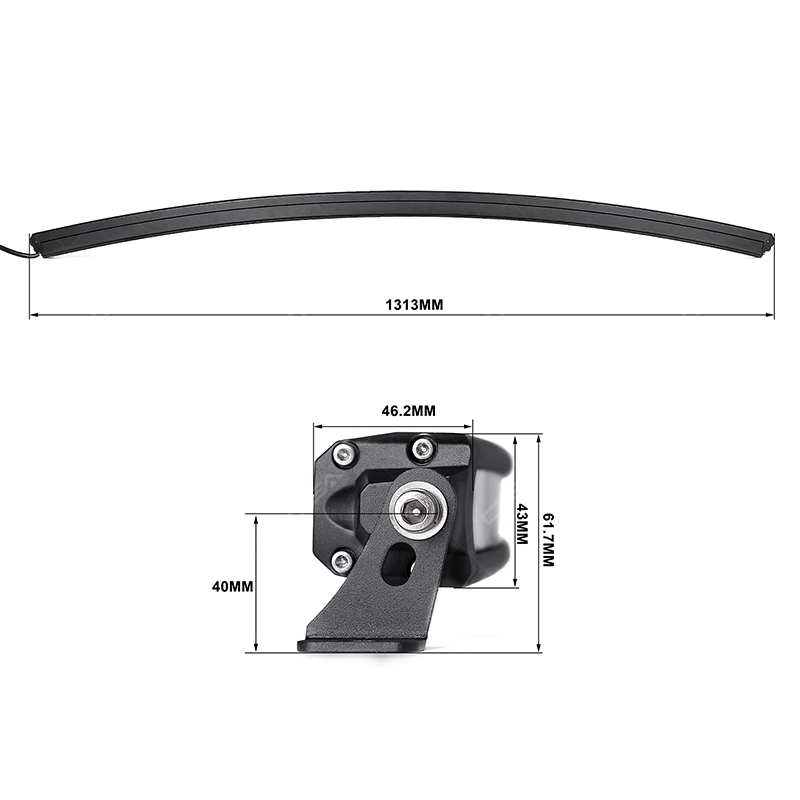

I Product Size
