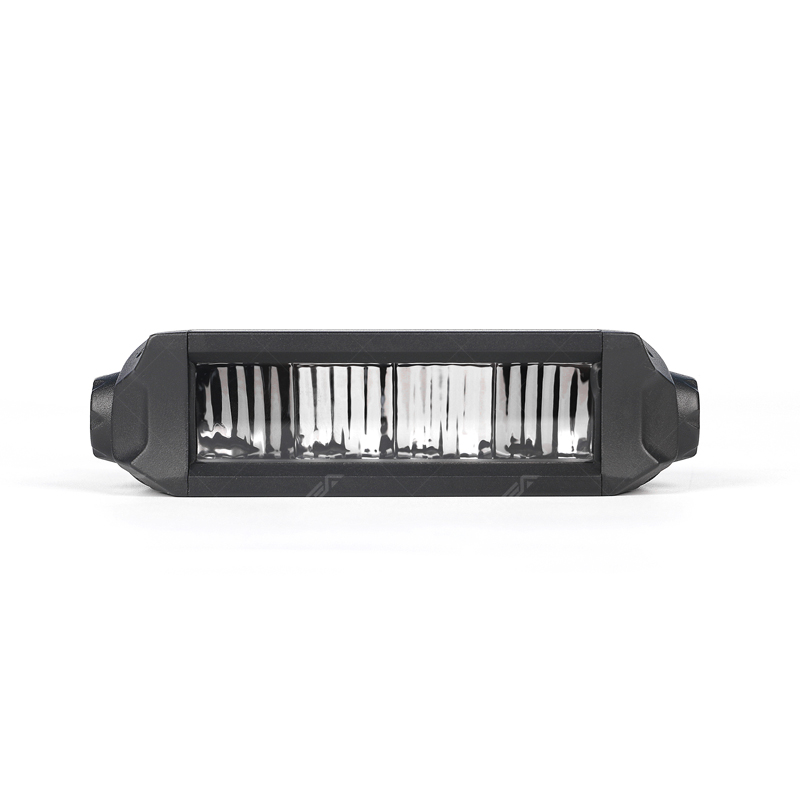

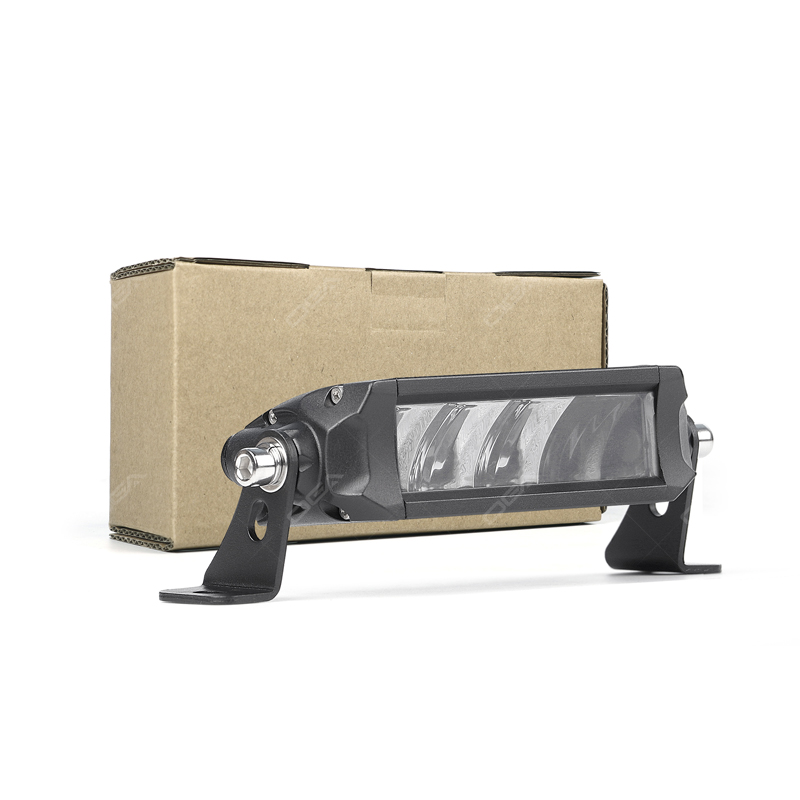

46 Series street legal 6 inches fog beam + strobe thin LED light bar

◆ SAE auxiliary fog beam and strobe light

◆ Low profile slim single row with no screw front frame

◆ Half convex optics with automotive grade modular chips

◆ For on-road use, not just off-road use

Wholesale request

6 Inch Slim LED Light Bar

Product specifications

PRODUCT NAME OGA-46-6"-FOG+STROBE THEORETICAL LUMENS 1400LM
LED SOURCE 4 x 5W HFL1 LED + 4 x 3W V3 LED ACTUAL LUMENS 718LM FOG+343LM STROBE
POWER OUTPUT 32W VOLTAGE COMPATIBILITY 9-36V DC
CERTIFICATION

SAE J583 (FOG BEAM) / SAEJ845 (STROBE)

WARRANTY 2 YEARS

Features

01-Fog beam thin LED light bar



What are the special parts about OGA 46 Series Street Legal Light bars?

1. SAE/DOT compliance, not just off road use
Off road auxiliary LED light bars are common in the market. OGA 46 series SAE compliant street legal led light bars can be used on road, not just off road.

2. Half convex optics with automotive grade modular chips.
The half convex design is perfect according to HFL2 and HFL1 chips. High-end auto automotive grade modular chips are used for longer life span.


Patented optical design thin light bar



3. Patented optical design combine legal fog light and strobe lights all in one.
These series carefully engineered product by professional optical designers. There are 3 beam patterns optional for 6 inches street legal led light bars as below, auxiliary high beam SAEJ581, auxiliary fog light SAEJ583 and auxiliary fog light SAEJ583 + warning strobe SAEJ845.

SAE Driving beam is designed for auxiliary high beam, and it is also excellent for general illumination.

SAE Fog beam was designed for auxiliary fog beam with wider view.

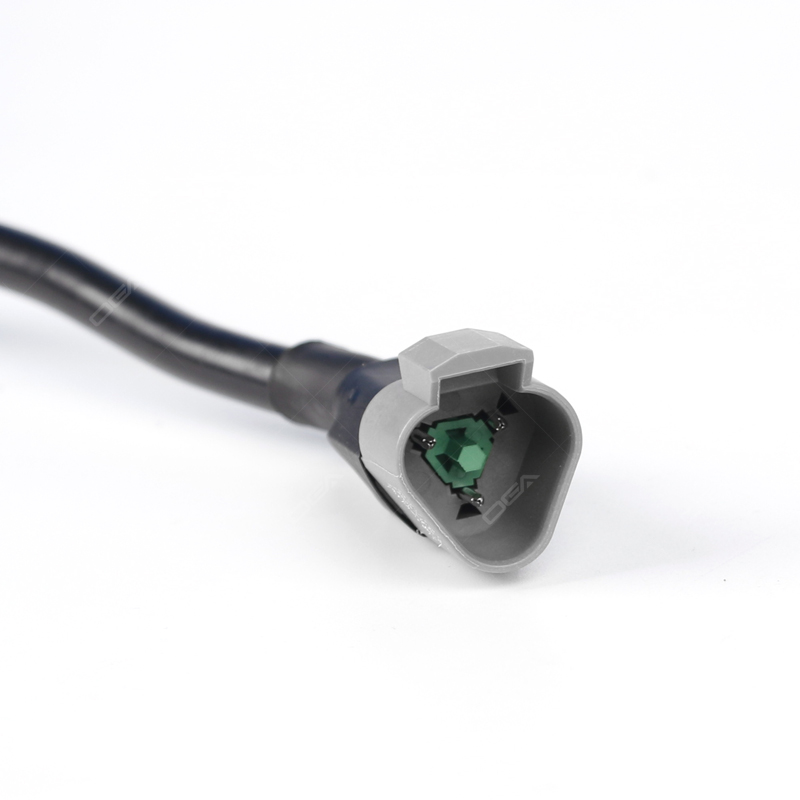

SAE Fog beam + Strobe light provides an auxiliary wider fog beam and amber warning strobe light all in one. (OGA new C6F series wiring harness with 4 strobe modes is compatible with OGA 46 series 6'' and 10'' fog+strobe function light bars.)

- And one of them is a 20" led light bar that has a legal high beam, fog light, and strobe light all in one.


SAE compliant slim LED light bar

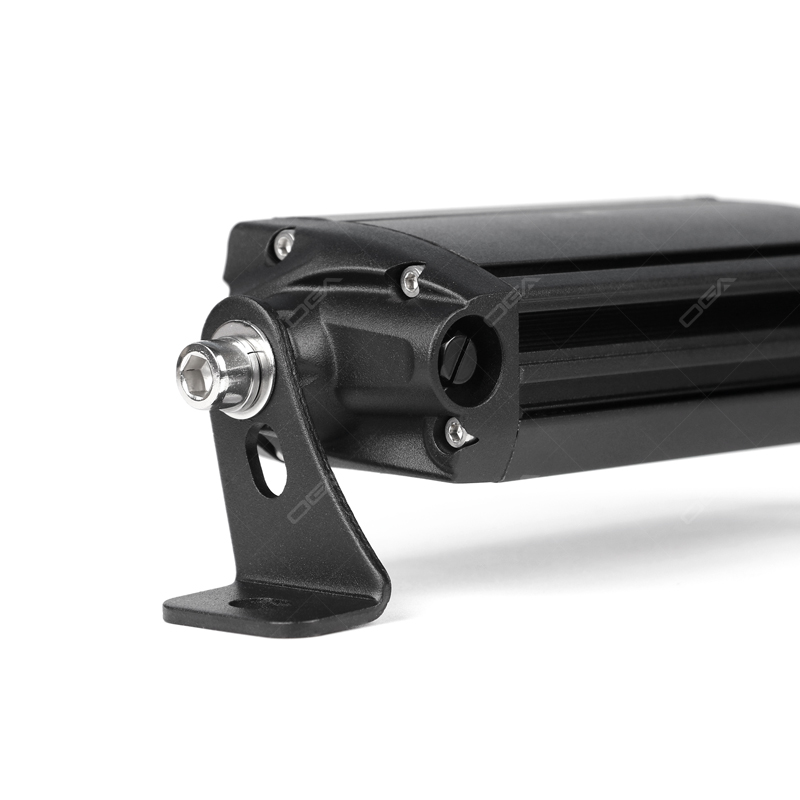

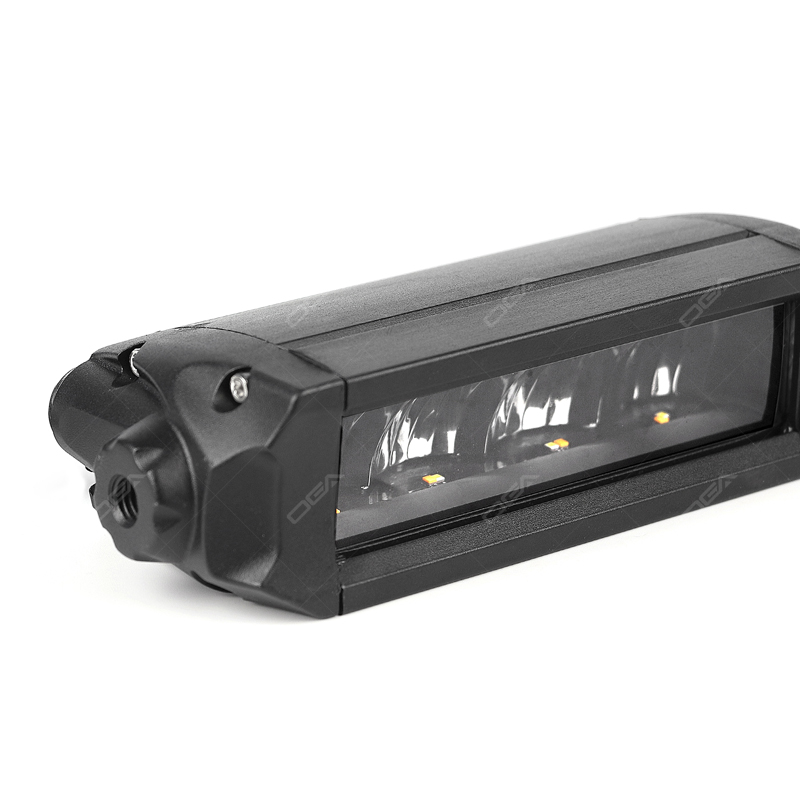

4. Low profile slim single row with no screw front frame
Low profile slim light bars can allow them to be fit in the bumpers and grills in more vehicles. The no screw front frame has better waterproof and performance.

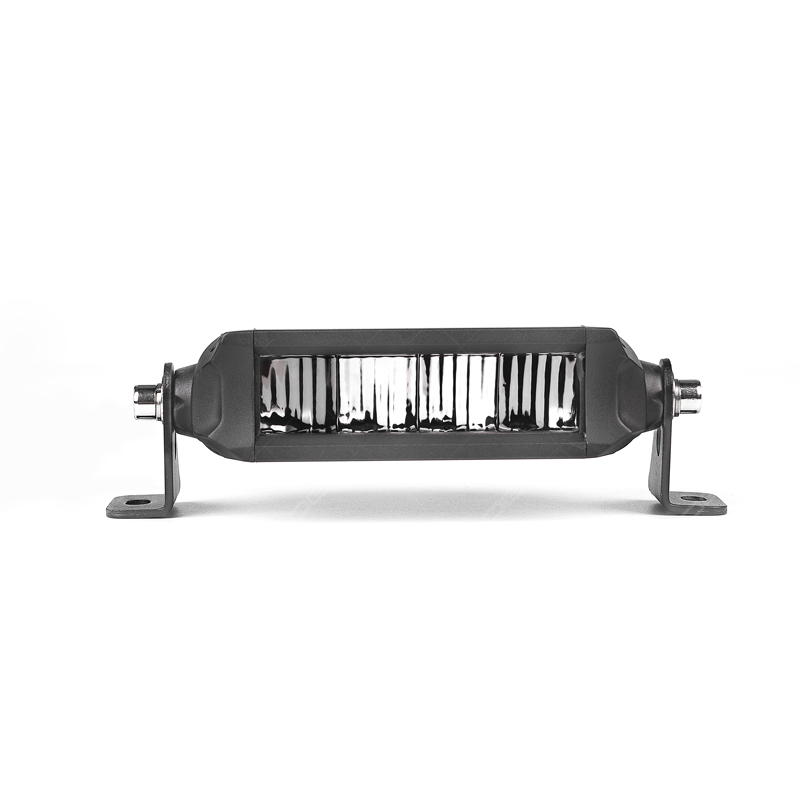

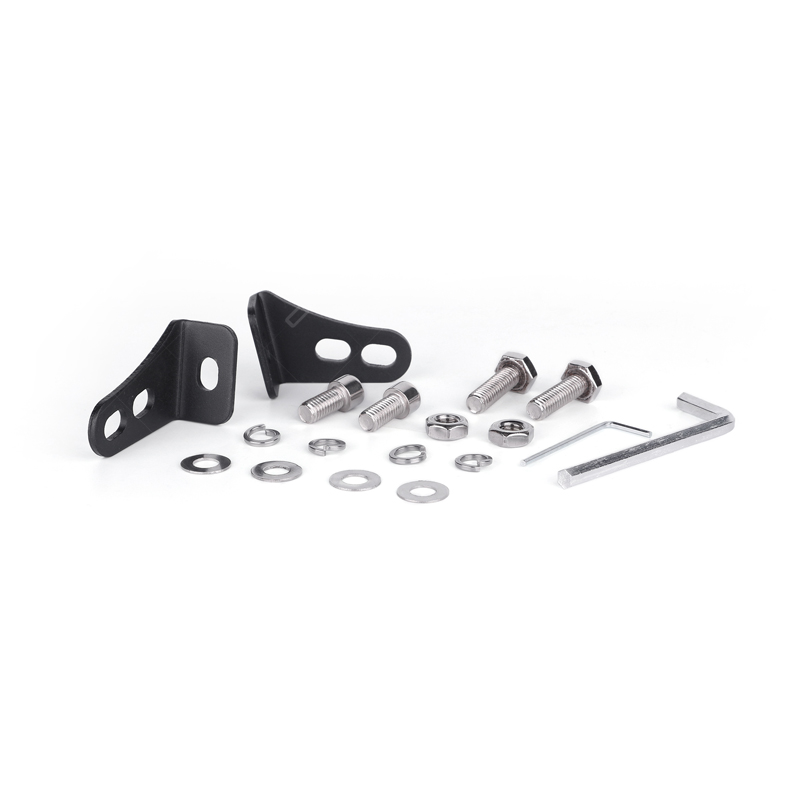

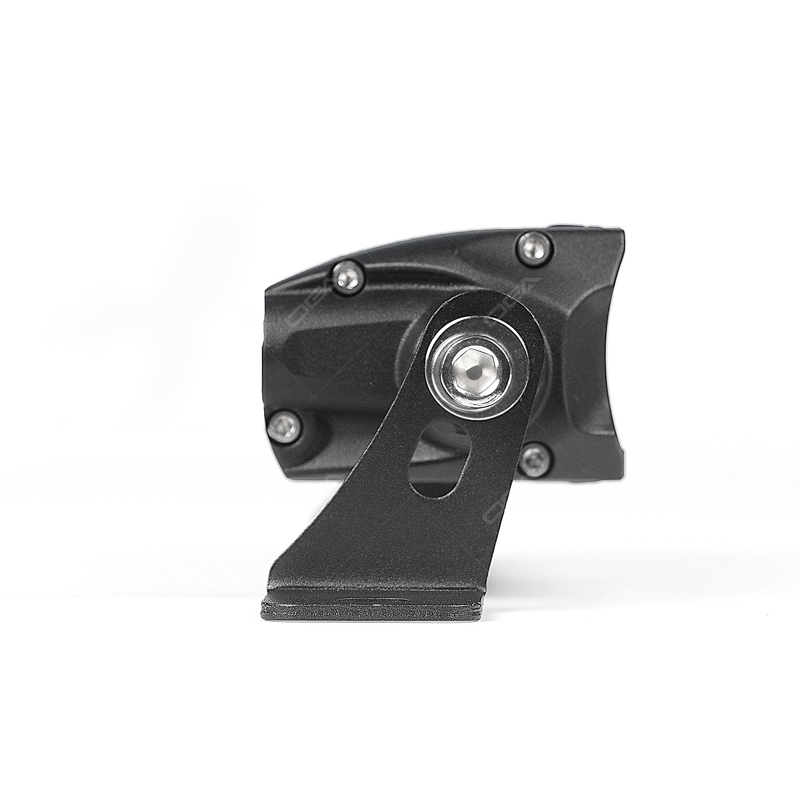

5. Versatile mounting options

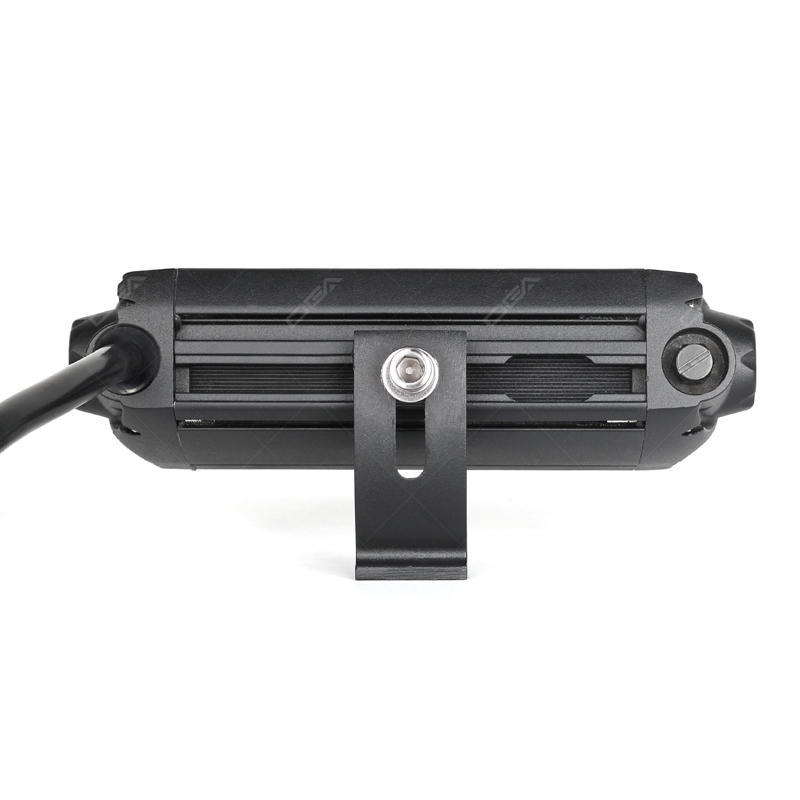

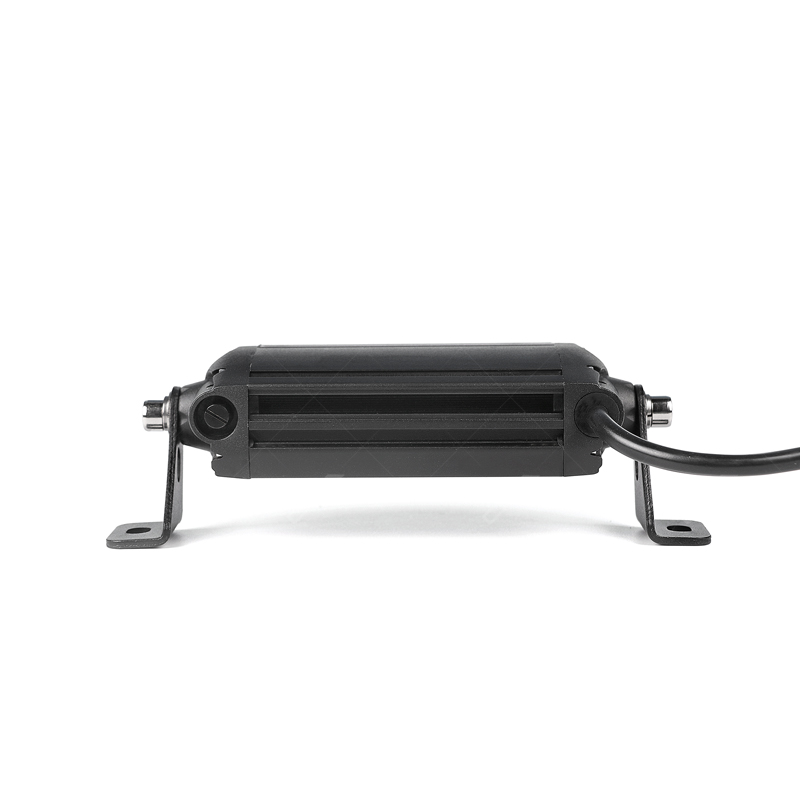

There are versatile mounting options for easier installation, side mounting and bottom mounting available.


No screw front frame LED light bar legalIP67 Thin LED Light BarSlim single row LED bar for easy fitment

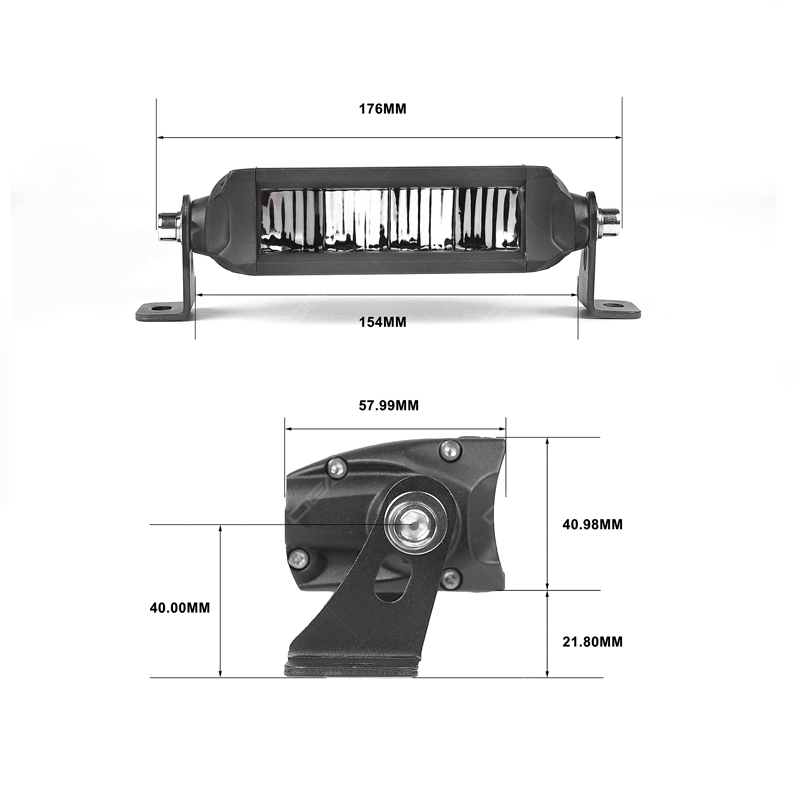

Product Size
